Outdoor Optical Cable, Light Armored, Stranded, Al-PE (2-144F)

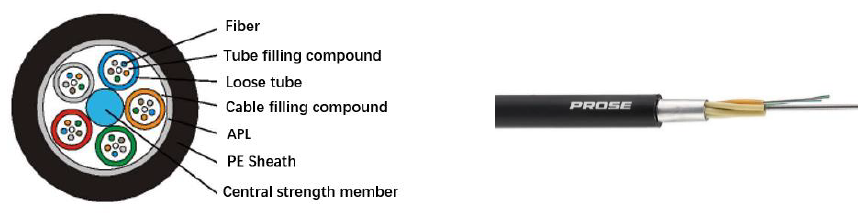

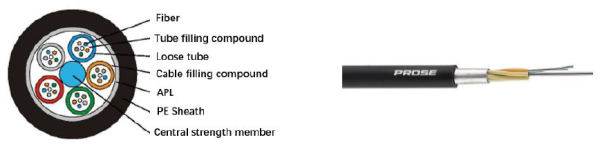

Prose outdoor optical fiber FC05 series cables are designed for fiber solutions mainly used for fiber optic connections in outdoor areas, backbone conduit or overhead connections between buildings. The structure of this cable consists of a 250μm (singlemode or multimode) optical fiber sleeved in a loose casing made of high modulus polyester material filled with a waterproof compound. In the center of the cable core is a metal reinforcement, which for some core numbers is extruded with a layer of polyethylene (PE). The loose tube (and filler rope) is twisted around the center reinforcement to form a compact round core, with gaps in the core filled with a water-resistant filler. Aluminum plastic coated tape (APL) longitudinally wrapped and extruded polyethylene sheathed cable.

Datasheet:
FC05 Fiber Cable, Light Armored, Stranded, Al-PE V1.0
