Fiber Cable, Outdoor, Light Armored, Stranded (Parallel steel wire with FRP)

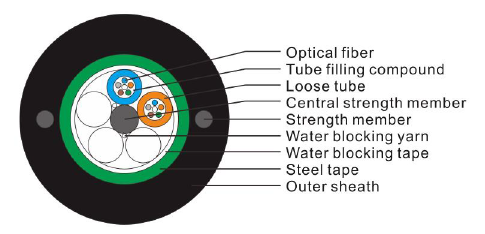

Prose outdoor optical fiber FC09 series cables are designed for fiber solutions mainly used for fiber optic connections in outdoor areas. The structure of this cable consists of a 250um (singlemode or multimode) optical fiber sleeved in a loose casing made of high modulus polyester material filled with a waterproof compound. In the center of the cable core is a central strength member, which is fiber reinforced plastics (FRP). The tube is longitudinally wrapped with a double-sided chromium-coated plastic steel strip, and water blocking material is added between the steel strip and the tube to ensure the compact and longitudinal water blocking of the cable. Two parallel steel wires are placed on both sides of the tube and the extruded PE sheath is formed.
