| Power Capacity | 10kVA – 40kVA(10kW – 40kW) |
|---|---|
| Power Factor | 1.0 |
| Input Voltage | 190-520VAC(Three Phase) at 50% load; |
| Output Voltage | 3 x 360*/380/400/415 VAC (3 Phase+N) |
| Size (Width*Depth*Height, mm) | 680 x 438 x 133 (3U) |

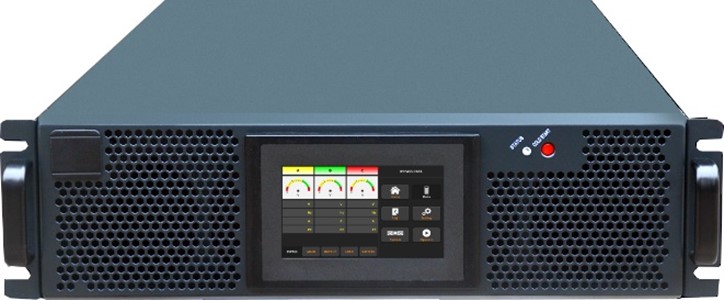

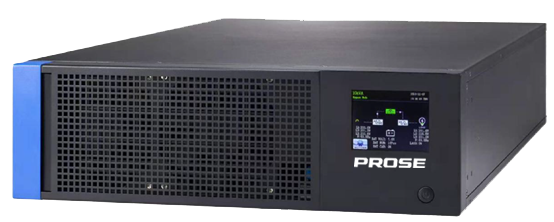

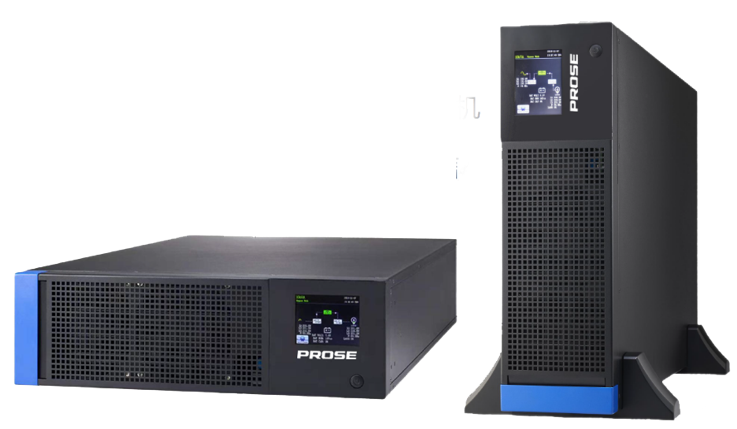

UPS Rack-Mounted/Tower Type 10-40KVA
The A Series 10-40 KVA(The tower configuration is only applicable to models in the 10-20KVA range) UPS is a new generation of general-purpose UPS power supply launched by PROSE. It adopts advanced DSP digital control technology, effectively improving product performance and system reliability, and achieving integration and miniaturization with higher power density. At the same time, to fully meet the individual needs of users, this high-end low-power online UPS power product, specially launched for domestic small and medium-sized enterprises and small power supply environments, can provide high-reliability power protection for users’ departmental servers, small local area networks, workstations, industrial computers, small medical equipment and other small precision electronic instruments.
Datasheet:
| Part Number | Description | |
|---|---|---|
| RT10K31LA | 10KVA Long-Run Model(Without Internal Batteries), 3-Phase In 1-Phase Out | RT10K31LA |
| RT20K31LA | 20KVA Long-Run Model(Without Internal Batteries), 3-Phase In 1-Phase Out | RT20K31LA |
| RT10K33LA | 10KVA Long-Run Model(Without Internal Batteries), 3-Phase In 3-Phase Out | RT10K33LA |
| RT20K33LA | 20KVA Long-Run Model(Without Internal Batteries), 3-Phase In 3-Phase Out | RT20K33LA |
| R30K33LA | 30KVA Long-Run Model(Without Internal Batteries), 3-Phase In 3-Phase Out | R30K33LA |
| R40K33LA | 40KVA Long-Run Model(Without Internal Batteries), 3-Phase In 3-Phase Out | R40K33LA |
